Cable Reeling Drum

We are leading Cable Reeling Drum, Manufacturers, Suppliers and Exporters located in Ambarnath MIDC Dist Thane, Maharshtra India.

mitool

Cable Reeling Drums are essential components of industrial plants and factories. These drums are used to wind and unwind long cables or wires, which are needed to power heavy machinery and equipment. Without a properly functioning cable reeling drum, the cables can get tangled or damaged, leading to downtime and potential safety hazards.

Mitool Equipments is a leading manufacturer and Exporter of cable reeling drums in Mumbai, India. The company has been providing high-quality cable management solutions to its clients for over two decades. Mitool Equipments is committed to offering reliable, efficient, and durable cable reeling drums that meet the diverse needs of its customers.

Cable Reeling Drum Functionality :

A cable reeling drum is a cylindrical spool that rotates around a central axis. The drum is used to wind and unwind cables or wires, which are connected to a power source and equipment. The drum can be mounted horizontally or vertically, depending on the application and the space available.

Cable reeling drums are used in a variety of industries, including mining, steel production, chemical plants, and heavy machinery. They are essential in providing power and connectivity to equipment that is constantly in motion, such as cranes, conveyors, and hoists.

Cable Reeling Drum Types :

Mitool Equipments offers a wide range of cable reeling drums to meet the needs of different industries. Some of the common types of cable reeling drums available are:

a) Spring Operated Cable Reeling Drum - This type of cable reeling drum uses a spring mechanism to wind and unwind the cable. The spring is tensioned when the cable is wound and releases the tension when the cable is unwound. Spring-operated cable reeling drums are ideal for applications where space is limited.

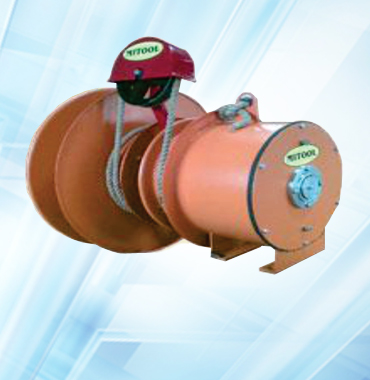

b) Spring Operated Slipring-less Cable Reeling Drum - This type of cable reeling drum operates similarly to the spring-operated cable reeling drum, but without the use of slip rings. Slip rings are used to transfer electrical power from a stationary source to a rotating machine, but they can be prone to wear and require maintenance. Slipring-less cable reeling drums eliminate this issue and are ideal for applications where maintenance is a concern.

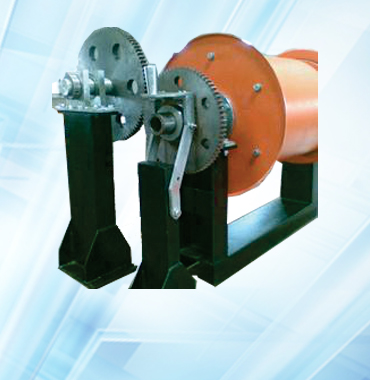

c) Sprocket or Gear Driven Cable Reeling Drum - This type of cable reeling drum uses sprockets or gears to wind and unwind the cable. The sprockets or gears are connected to an electric motor that provides power. Sprocket or gear-driven cable reeling drums are ideal for heavy-duty applications that require high torque.

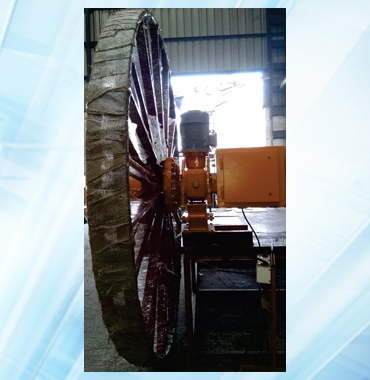

d) Torque Controller Motorized Cable Reeling Drum - This type of cable reeling drum uses a torque controller to adjust the torque of the motor based on the load on the cable. The torque controller ensures that the cable is wound and unwound smoothly and without damage. Torque controller motorized cable reeling drums are ideal for applications where the load on the cable varies.

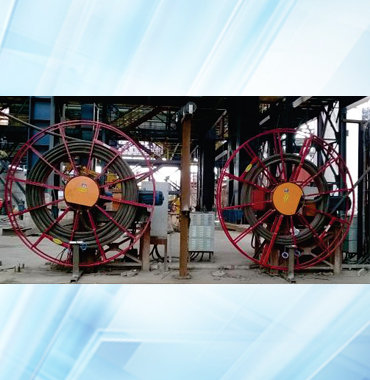

e) Stall Torque Motor Operated Cable Reeling Drum - This type of cable reeling drum uses a motor that is designed to stall when the load on the cable exceeds a certain threshold. The motor then automatically restarts when the load on the cable decreases. Stall torque motor-operated cable reeling drums are ideal for applications where there is a risk of cable damage due to overloading.



Advantages of Mitool Equipments Cable Reeling Drums

Mitool Equipments cable reeling drums are designed to provide reliable and efficient cable management solutions for different industries. Here are some of the advantages of using Mitool Equipments cable reeling drums:

1) Durable and Reliable - Mitool Equipments cable reeling drums are made from high-quality materials that are designed to withstand harsh industrial environments. The drums are built to last and provide reliable cable management solutions for years to come.

2) Customizable - Mitool Equipments cable reeling drums can be customized to meet the specific needs of different industries. The company offers a wide range of sizes, materials, and mounting options to ensure that the drums can be tailored to the unique requirements of each application.

3) Efficient Cable Management - Mitool Equipments cable reeling drums are designed to provide efficient cable management solutions. The drums are engineered to wind and unwind cables smoothly, reducing the risk of cable damage and downtime.

4) Low Maintenance - Mitool Equipments cable reeling drums require minimal maintenance, reducing the overall cost of ownership. The company uses high-quality components that are designed to last and require minimal maintenance.

Mitool Equipments Manufacturing Process

Mitool Equipments uses state-of-the-art manufacturing processes to produce high-quality cable reeling drums. The company uses advanced equipment and tools to ensure that the drums are built to exact specifications and meet the highest quality standards.

Mitool Equipments uses only the best materials, such as high-grade steel, to ensure that the drums are durable and reliable. The company also uses advanced welding and fabrication techniques to ensure that the drums are strong and can withstand harsh industrial environments.

Once the materials have been selected and prepared, the manufacturing process moves to the assembly stage. The company's team of experienced engineers and technicians work together to assemble the components of the cable reeling drum, including the spool, bearings, motor, and other components. The drums are assembled with precision to ensure that they operate smoothly and efficiently.

After the drums have been assembled, they undergo rigorous testing and inspection to ensure that they meet the company's quality standards. The drums are tested for strength, durability, and efficiency to ensure that they can withstand the rigors of industrial applications. The company also conducts electrical testing to ensure that the motors and other components are functioning correctly.

Once the drums have passed the testing and inspection process, they are ready for shipment to customers. Mitool Equipments uses advanced packaging techniques to ensure that the drums are delivered to customers safely and securely.

Cable reeling drums are essential components of industrial plants and factories. They are used to manage long cables and wires that are needed to power heavy machinery and equipment. Mitool Equipments is a leading manufacturer of cable reeling drums in Mumbai. The company has been providing high-quality cable management solutions to its clients for over two decades. Mitool Equipments cable reeling drums are designed to provide reliable and efficient cable management solutions for different industries. The company uses state-of-the-art manufacturing processes to produce high-quality cable reeling drums that meet the diverse needs of its customers. If you are looking for a reliable and efficient cable reeling drum, Mitool Equipments is the company to trust.

Applications of Cable Reeling Drum

Cable reeling drums play a critical role in the operation of various types of cranes and transfer cars. Here are some examples of how cable reeling drums are used in different types of cranes and transfer cars:

a) EOT Cranes - Electric Overhead Traveling (EOT) cranes are used to lift and move heavy loads in industrial settings. Cable reeling drums are used to manage the power and control cables that are connected to the crane's motors and control systems. The cable reeling drum ensures that the cables are wound and unwound smoothly, reducing the risk of cable damage and downtime.

b) Goliath Crane - Goliath cranes are similar to EOT cranes, but they are designed to operate on the ground rather than on an overhead rail system. Cable reeling drums are used to manage the power and control cables that are connected to the crane's motors and control systems. The cable reeling drum ensures that the cables are wound and unwound smoothly, reducing the risk of cable damage and downtime.

c) Gantry Crane - Gantry cranes are similar to EOT cranes, but they are designed to operate on a gantry rail system that runs along the ground. Cable reeling drums are used to manage the power and control cables that are connected to the crane's motors and control systems. The cable reeling drum ensures that the cables are wound and unwound smoothly, reducing the risk of cable damage and downtime.

d) Transfer Cars - Transfer cars are used to move heavy loads between different areas of a facility. Cable reeling drums are used to manage the power and control cables that are connected to the transfer car's motors and control systems. The cable reeling drum ensures that the cables are wound and unwound smoothly, reducing the risk of cable damage and downtime.

e) STS Crane - Ship-to-Shore (STS) cranes are used to load and unload containers from ships. Cable reeling drums are used to manage the power and control cables that are connected to the crane's motors and control systems. The cable reeling drum ensures that the cables are wound and unwound smoothly, reducing the risk of cable damage and downtime.

f) ELL Crane - Elevated Loading and Unloading (ELL) cranes are used to load and unload cargo from elevated positions, such as on a pier or dock. Cable reeling drums are used to manage the power and control cables that are connected to the crane's motors and control systems. The cable reeling drum ensures that the cables are wound and unwound smoothly, reducing the risk of cable damage and downtime.

g) Quay Crane - Quay cranes are used to load and unload containers from ships that are docked at a quay. Cable reeling drums are used to manage the power and control cables that are connected to the crane's motors and control systems. The cable reeling drum ensures that the cables are wound and unwound smoothly, reducing the risk of cable damage and downtime.

In all of these applications, cable reeling drums play a critical role in ensuring that the cranes and transfer cars operate efficiently and safely. Mitool Equipments offers a wide range of cable reeling drums that are specifically designed to meet the needs of different types of cranes and transfer cars. The company's experienced engineers and technicians can help customers choose the right type of cable reeling drum for their specific application, ensuring that the equipment operates smoothly and without downtime.

We are also specialized in the Export and Supply of Premium Cable Reeling Drum to various regions across India, including Delhi, Ghaziabad, NCR, Bhiwadi, Noida, Kolkata, and East India, as well as international markets such as Indonesia, Bangladesh, Singapore, Nigeria, Tanzania, Kenya, South Africa and many other countries around the globe.

Cable Reeling Drums are Developed for automatic reeling & unreeling of flexible trailing cables & transferring ground ( Fixed ) supply to movable machines, whose travel is mostly on track.

Type of Cable Reeling Drums
Cable Reeling Drum with Spring Drive. Mitool Reeling Drums are powered by Clock type Springs and rotating on sealed for life time sealed bearings, Mitool reeling drums offer a convenient, cost effective means of supplying power to Mobile machines. Mitool Reels are fabricated in heavy gauge Mild steel Sheets. Standard way of finish is powder coating. Standard slipring assemblies accommodate composite cables combining up to 200 Amps power with control signals. These drums recover & store the cable in multiple layers on the drum, spring operated Drums can be used for horizontal, Catenary of cables, Vertical pull & DC magnet reels.
