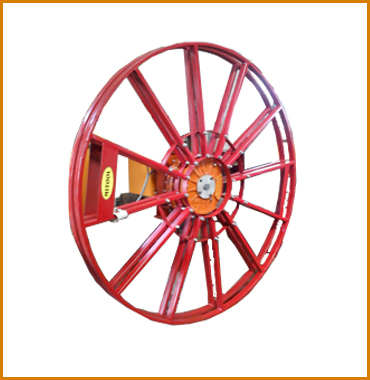

Torque Controller Motorised Hose Reeling Drum

We are leading Torque Controller Motorised Hose Reeling Drum , manufacturers, suppliers and exporters located in Ambarnath MIDC Dist Thane, Maharshtra India.

`Mitool' Make torque controller type reels may be driven by any substantially constant speed motive power unit. In their standard form, the units are designed to accept L90, L100, L112, L132, standard flange mounted AC motors with selection depending upon application requirements such as speed & energy requirements etc.The most popular choice is for motor working from a 3 ph. supply.

The power unit drives the reel through an irreversible worm and wheel transmission which is totally enclosed and lubricated for life. The reduction ratio of the gearbox is fixed and rotational speed of the output spindle is selected by fitting a motor of appropriate speed. Since the motor mounts are designed to accept universally available stock motors, variation in reeling speed are easily obtained. In all cases, rotational speed of output spindle is arranged to be in excess of that required for cable reeling which ensures correct cable retrieval under all operating conditions. The energy dissipating capability of the torque controller unit, is greater than the energy permissible through the gearbox thus ensuring adequate safety margins are supplied to torque controller unit.

The torque controller employs an advanced design of friction principles and the unit incorporates a unique arrangement to give stable performance during all operating conditions. A very large area of friction lining in relation to the energy dissipated ensures an extremely long period between lining replacements. Special consideration has been given to lining renewal, if due to a particularly high duty cycle, this ultimately becomes necessary and the complete replacement of the lining can be accomplished by an unskilled person in less than 30 minutes.

The irreversibility of the worm and wheel transmission and the stable torque characteristics of the torque controller permits successful Hoe reeling on the basis of energizing the motor for recovery only and wiring diagrams are offered for this conception. The benefits of energizing the reel motor for Hose recovery solely are not only increased life of friction lining and greatly extended intervals between torque corrections but, also a substantial saving in energy consumption
