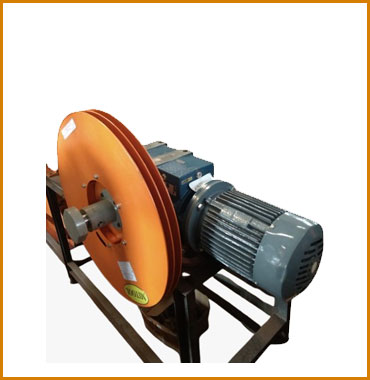

Squirrel Cage Motor Type Hose Reeling Drum

Torque Motor Operated Cable/ Squirrel Cage Motor Type Hose Reeling Drum suitable for handling lengths of cables/Hose in excess of those which cannot be handled by a conventional spring-operated types.

The units are totally enclosed and weatherproof. The torque motors are capable of operating continuously in the stalled position or of being rotated against normal phase rotation.

In other words, acting like a spring of infinite length. The motors have an integrally mounted electro-magnetic brake which is D.C. operated through a built-in rectifier in indigenous Motors & Conical Rotor with mechanical brake arrangement in Imported Motor.

Normal motor supply is 400/440 volts 3 phase, 50 Hz . The drive to the reel is by means of chains and sprockets, with single or double reduction according to requirements. They can handle length up to 500 Mtrs multicore cables can be used. The access to the weatherproof sliprings and brush gear is by means of an easily removable cover situated at the non-driving end of the reel.

These units are specially designed for automatically handling trailing cables supplying power to the long travel motion on overhead, Gantry cranes, Stacker Reclaimer, Transfer Car etc.
