Sprocket / Gear Driven Cable Reeling Drum

We are leading Sprocket / Gear Driven Cable Reeling Drum Manufacturers, Suppliers and Exporters Located in Ambarnath MIDC Dist Thane, Maharshtra India.

Mitool Equipments Pvt.Ltd. African

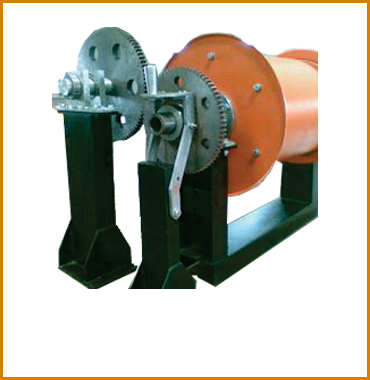

SPROCKET / GEAR DRIVEN CABLE REELING DRUM
Sprocket driven or gear driven cable reeling drums are generally used in magnet cranes where long travel & vertical operation (lifting magnets) is required. Sprocket/gear driven CRD's are generally recommended to avoid tension on cable & to have a better life of the drum. It is Similar to the spring operated type CRD's. Only the difference is driving member is required to drive the sprocket/gear driven cable reeling drum. Spring has limitations over the design & its winding life.

Construction : It consists of driving sprocket/gear ,driven sprocket/gear, Slip ring assembly & drum for winding & unwinding the cable.

Working Principle : CRD is wounded or unwounded by respecting driving mechanism of client's drum. It is synchronized with rope drum.

Benefits of Sprocket driven CRD :
• Smooth Operation
• Efficient for long travel
• Longer Life.

Questionnaire :

Sr no Description Parameter
1. Application
2. Rope drum pitch dia ....mm
3. Hoisting speed ...m/min
4. No of falls
5. Cable Size ... C x ....sq mm
6. Cable OD ...mm
7. Height of lift ...mtrs
