	Cable Reeling Drum
	Reeling Lays
	Installing the Reels
	Torque Controlled Motorised Cable Reeling Drum
	Stall Torque Motor Operated Cable Relling Drum
	Squirrel Cage Stall Torque Motor Operated Cable Reeling Drum
	Slipring Stall Torque Motor Operated Cable Reeling Drum
	Slipringless Spring Operated Cable Reeling Drum
	Slipring Collector Columns
	Cable Drag Chain
	Resistance Box
	Questionnaire For Cable Reeling Drum
	Questionnaire For Cable Drag Chain

Installing The Reels

The Following arrangement show the most common ways of installing the reels.

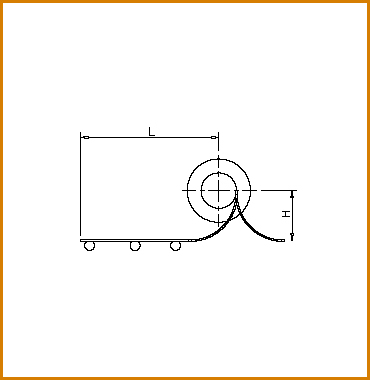

Horizontal Drag

This arrangement requies high spring tensions and is harsh on cable / hose. It should be avoided if at all possible. Howver, if no other solution is available please consult us.

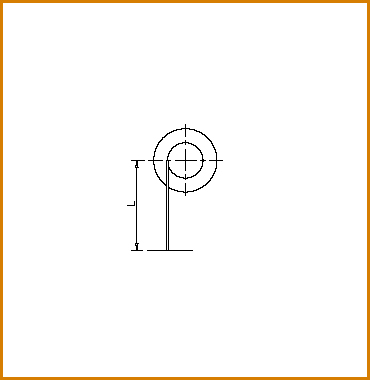

Verttical Pull

The reel is mounted on a fixed structure and must overcome the weight of the suspended Cable / Hose. The Length of travel is equivalent to the capacity of the reel.

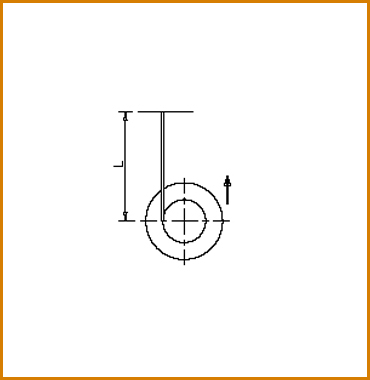

Verticak Recovery

This reel is again machine mounted and along vertical travel are available as the reel does not have to pull the weight of the cable. Capacities are the same as for 1. Horizontal recovery. Since all the weight of the hanging cable / hose is felt at the fixed point, we recommend the use of a cable grip to support the flexible here.

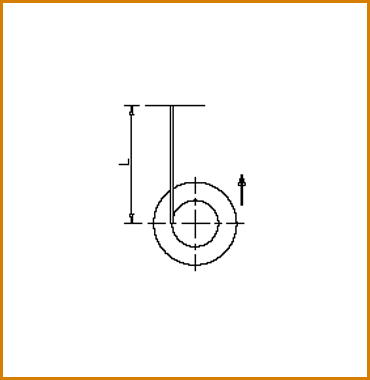

Horizontal Recovery - End Feed

Mounted on the machine, the reel recovers the cable or hose which is laid on the grouund or in a tray. With this arrangement the available machine travel is equal to the capacity of the reel.

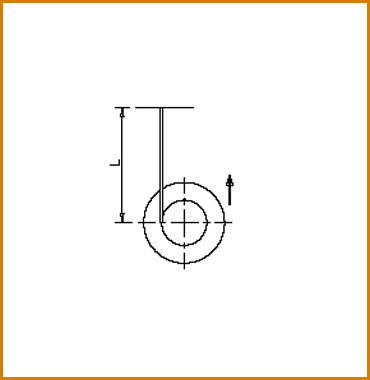

Horizontal Recovery - Centre Feed

This application is the same as (1) except that the machine travels both sides of the fixed point, where a turnover anchor is instaalled this arrangement provides a machine travel equal to twice the capacity of the reel.

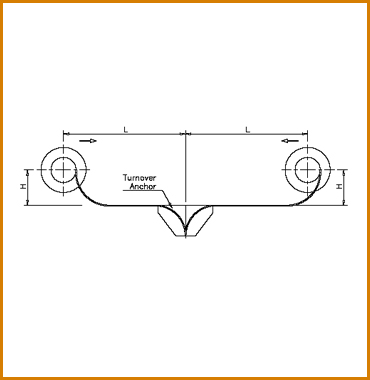

Horizontal Catenary

With this arrangemetn the cable / hose is not laid on the ground but suspemded in air by virtue of the tension imparted by spring.
The amount of sag can be calcuated and depends upon the strength of the spring cable weigth and length.

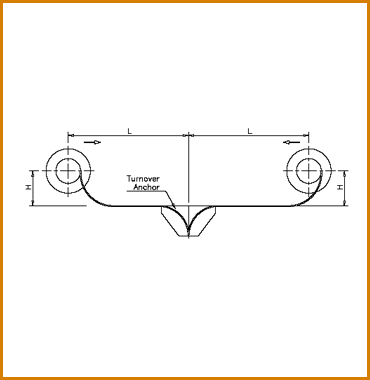

Horizontal Recovery - End Feed

Mounted on the moving machine, the reel recovers the cable or hose which is laid on the ground or in a tray. With this arrangement the avilable machine travel is equal to the capacity of the reel.

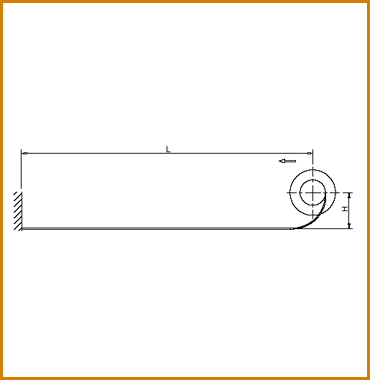

Horizontal Catenary

With this arangement the cable / hose is not laid on the ground but suspended in air by virtue of the tension imparted by spring.
The amount of sag can be calculated and depends upon the strength of the spring cable weight and length.
